Palace Hippodrome - 2/4 Wurlitzer, Style 135B
Seattle, Washington
2nd & Spring
Organ installation timeframe: 1920-1930

Back to the Washington Original Theatre Installations page

Click for a larger version of this image (147K)
Palace Hippodrome, c.1930

The Palace Hippodrome or "Hip" was one of Seattle's most popular vaudeville theaters. The theater was located at the corner of Second and Spring Streets in downtown Seattle.

Click for a larger version of this image (81K)

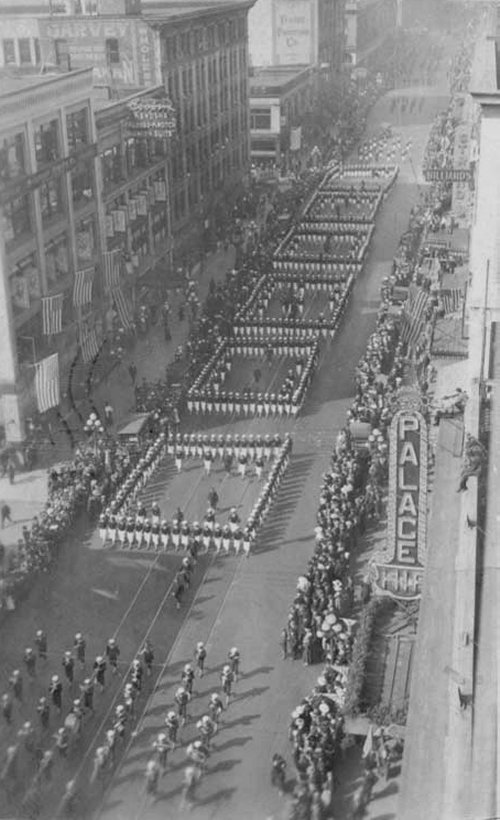

Downtown Seattle street scene showing Palace Hip signage on right, c.1917

The Palace Hip had a Style 135B Wurlitzer, opus #280, installed in 1920. The organ had a "piano" style console with an oak veneer. The lower manual was 88 notes and played pipes and a piano in the console. The upper manual was 61 notes.

Click for a larger version of this image (66K)

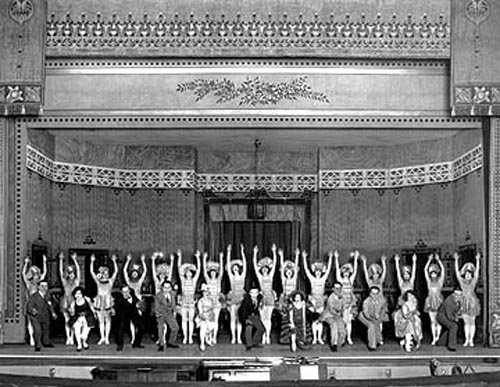

Performers on the stage, date unknown. Style 135B console visible in pit.

According to writing found on the relay, the organ was removed from the theatre on August 10, 1930 by a group that included Paul O'Neal.

Ad from the Seattle Post Intelligencer, c. 1925. -->
Why Men Leave Home starting Lewis Stone and Helene Chadwick

In 1933, Balcom & Vaughan installed the instrument at the West Seattle Christian Church. The piano mechanism and keyboard were removed and two 61 note manuals installed.

The organ remained in the church for 66 years until purchased by Wesley Spore in December 1999. At time of removal, the organ had 5 ranks. The Vox Humana had been removed and a 4' Dulciana was racked in its place. The Trumpet holes on the 4 rank chest held a Diapason of enormous scale and unknown manufacturer. A single rank chest with 8' Trumpet rank and 16' Robert Morton string extension were also added. Parts of the organ went to various individuals in the Puget Sound area. The two swell shade frames, 8' string offset and floor frame went to Tom Blackwell of Seattle. In 2012, Tom sold the swell shades to John Rust of Indiana.

Click for a larger version of this image (134K)

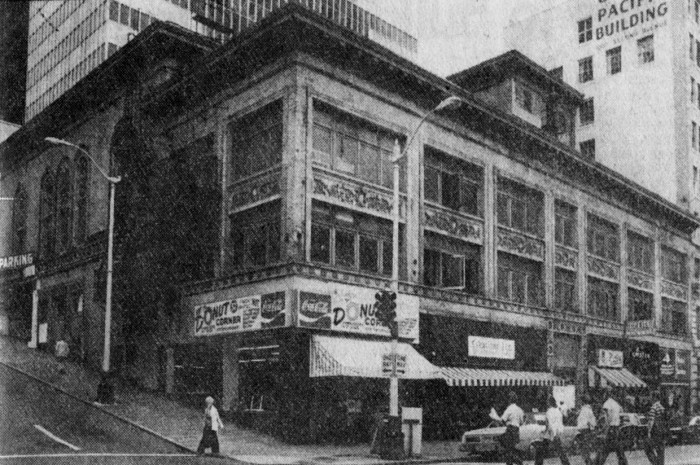

The Palace Hippodrome building, turned into a parking garage, seen as it awaits demolition in 1981.



Stoplist, courtesy, Jim Stettner 2005

Accomp  ( I  -  Enclosed)
16   Bourdon
8     Open Diapason
8     Flute
8     Salicional
8     Vox Humana
4     Flute
4     Salicet
       Cathedral Chimes


Solo  ( II  -  Enclosed)
16   Bourdon
8     Open Diapason
8     Flute
8     Salicional
8     Vox Humana
4     Flute
4     Salicet


Pedal  (Enclosed)
16   Bourdon
8     Flute
8     Cello


Stop / Rank / Pipe Analysis
16   Bourdon          (Acc/So/Ped)   12   Extension of the 8' Flute.
8     Open Diapason       (Acc/So)   61
8     Flute                 (Acc/So/Ped)  61
8     Salicional                 (Acc/So)   61
8     Cello                              (Ped)   - -   Same as the 8' Salicional.
8     Vox Humana            (Acc/So)   61
4     Flute                         (Acc/So)  12   Extension of the 8' Flute.
4     Salicet                      (Acc/So)  12   Extension of the 8' Salicional.
       Cathedral Chimes


Pipe Summary

Open Diapason
       Flute                 Salicional           Vox Humana
61 pipes                  85 pipes           73 pipes             61 pipes


Pedal Movements
Expression                 (balanced)


Tremulants
Main
Vox Humana


Action:  E-P

Voices:  4

Stops:  18; inc. chimes

Ranks:  4

Pipes:  280


Notes
At some point in time - presumably while the organ was at West Seattle Christian Church, someone added a 4-rank Echo division to the organ which was a free-reed division located atop the relay and adjacent to the shutters.
